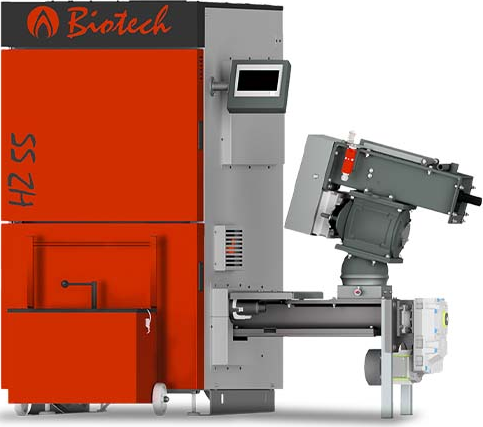

Wood chip boilers
HZ 35/50/55-E
The use of wood chips is ideal for apartment buildings,
farms and for heating microgrids.
Power range 35.0-55.0 kW
- Boiler body with efficient insulation
- Automatic ignition unit for wood chips
- Ash discharge with generously dimensioned ash box
- Lambda probe, temperature sensor and vacuum measurement for optimal combustion
- Firing system with rotating grate
- 2-chamber lock
- 7" touchscreen with intuitive and clearly designed menu navigation
- Control of a mixer-controlled
- Return increase including sensor
- Contact for external request
- Network access and remote access possible
- Multi-pass heat exchanger made of special steell
- bunker discharge
- Area-sealing 2-chamber sluice
- stoker screw
- grate cleaning
- optimized heat exchanger with automatic cleaning
- Energy-saving EC induced draft fan
- Combustion air flaps for precise dosing
- 2-stage ash removal
- chimney regulator
- Integrated particle separator

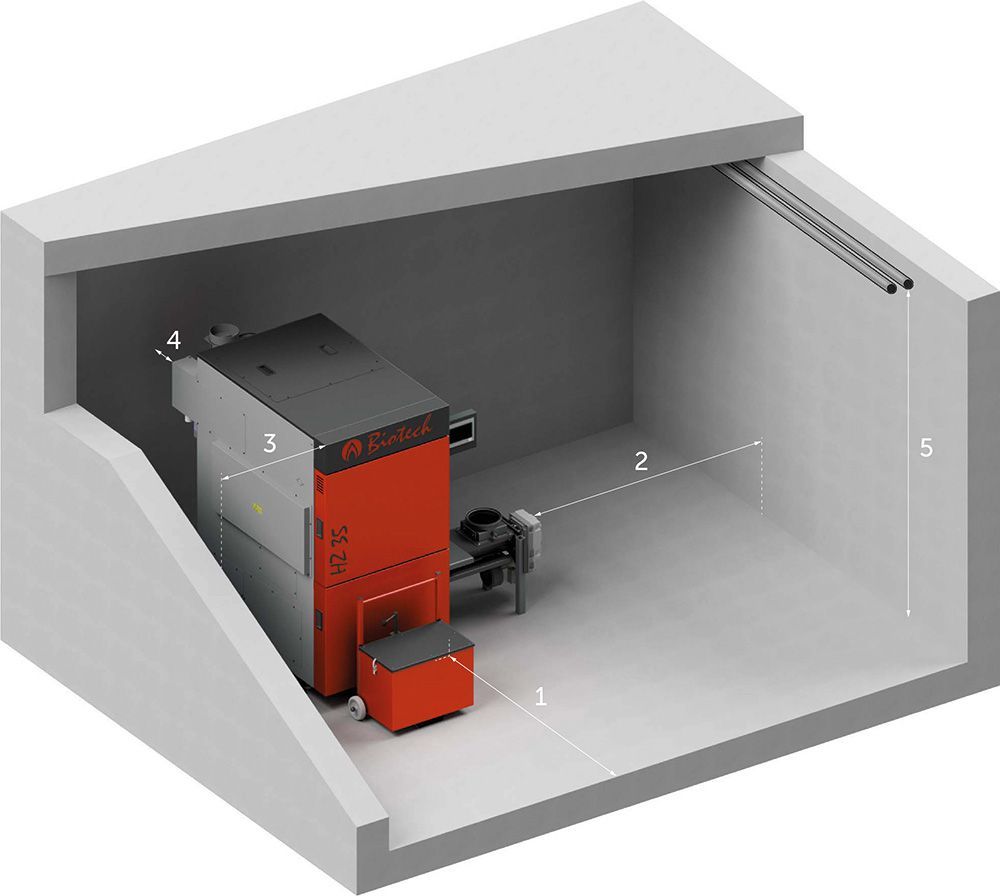

Minimum distances masonry
HZ 35/40/50
1: 1400 mm
2: 1750 mm
3: 500 mm
4: 500 mm
5: 2100 mm
HZ 55
1: 1550 mm
2: 1750 mm
3: 500 mm
4: 500 mm
5: 2100 mm
