TLM-Pro
TLM-Pro

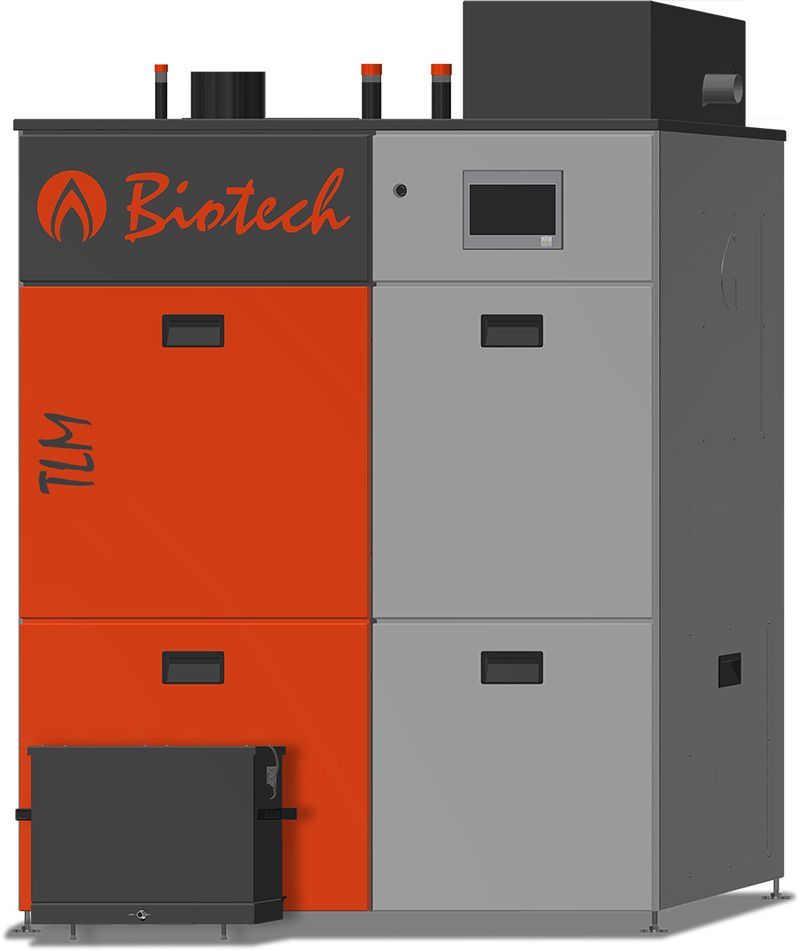

The optimal pellet heating system for the detached house. Sophisticated biotech technology, a large storage tank and a top efficiency of 94% characterize this boiler.
Power range 5.3-17.5 kW
- Lambda probe cleaning
- Stainless steel firing system (high temperature resistant) with automatic cleaning
- Primary and secondary air regulated with air mass sensor
- Heat exchanger with automatic cleaning
- automatic ignition of the pellets
- Ash drawer with ash compression
- High performance suction turbine with vacuum system
- Storage container with approx. 40 kg pellet volume
- speed-controlled induced draft fan
- Microprocessor control with fully graphic display
- Remote control via smartphone, tablet, PC and laptop possible
- unique DCC combustion control using air mass sensors and lambda probe
- Contact for external request

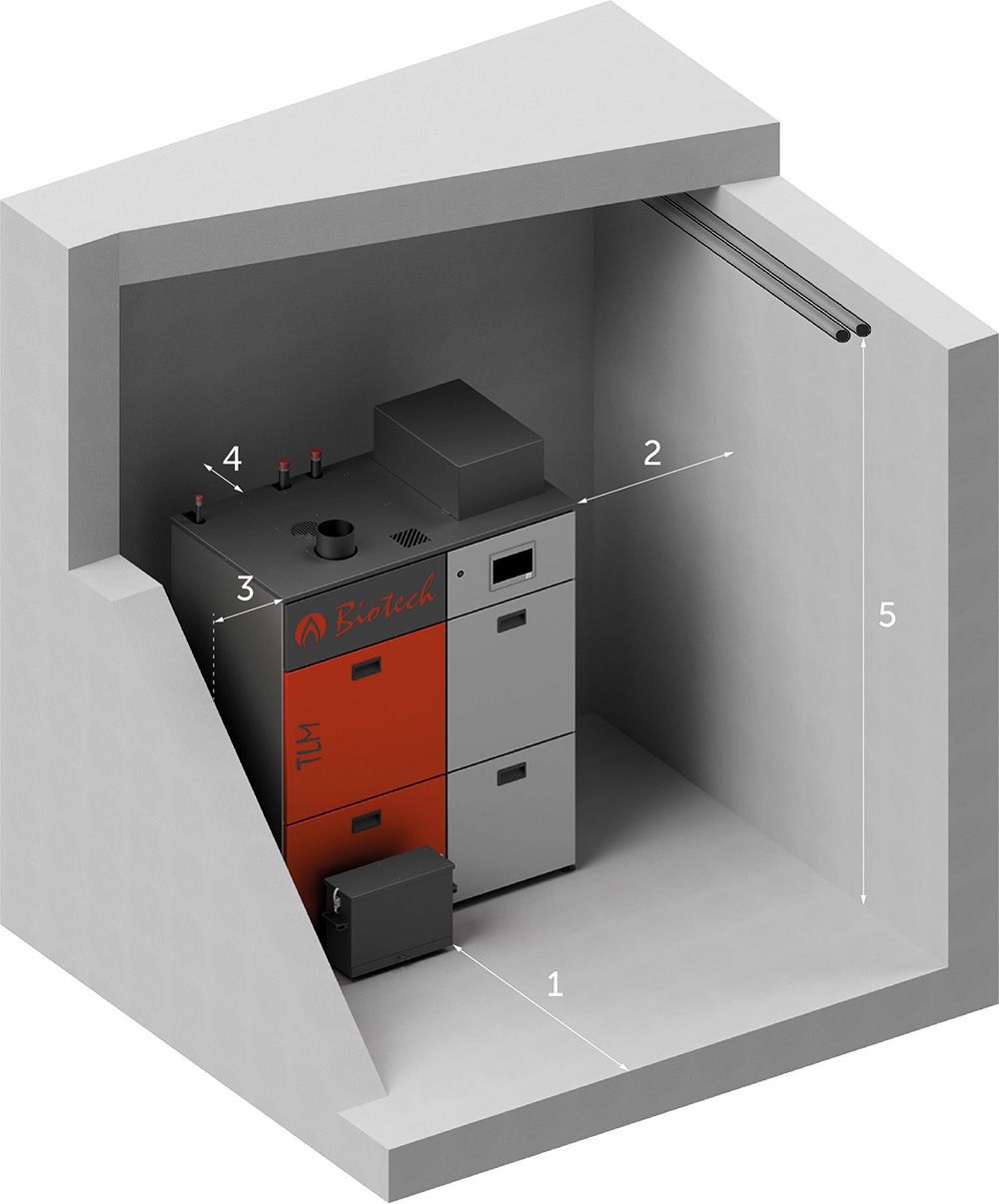

Minimum clearabces masonry
1: 1000 mm
2: 400-900 mm
3: 100-300 mm *
4: 200 mm
5: 2000 mm
*) Recommendation 250 mm, otherwise increased effort (costs)
