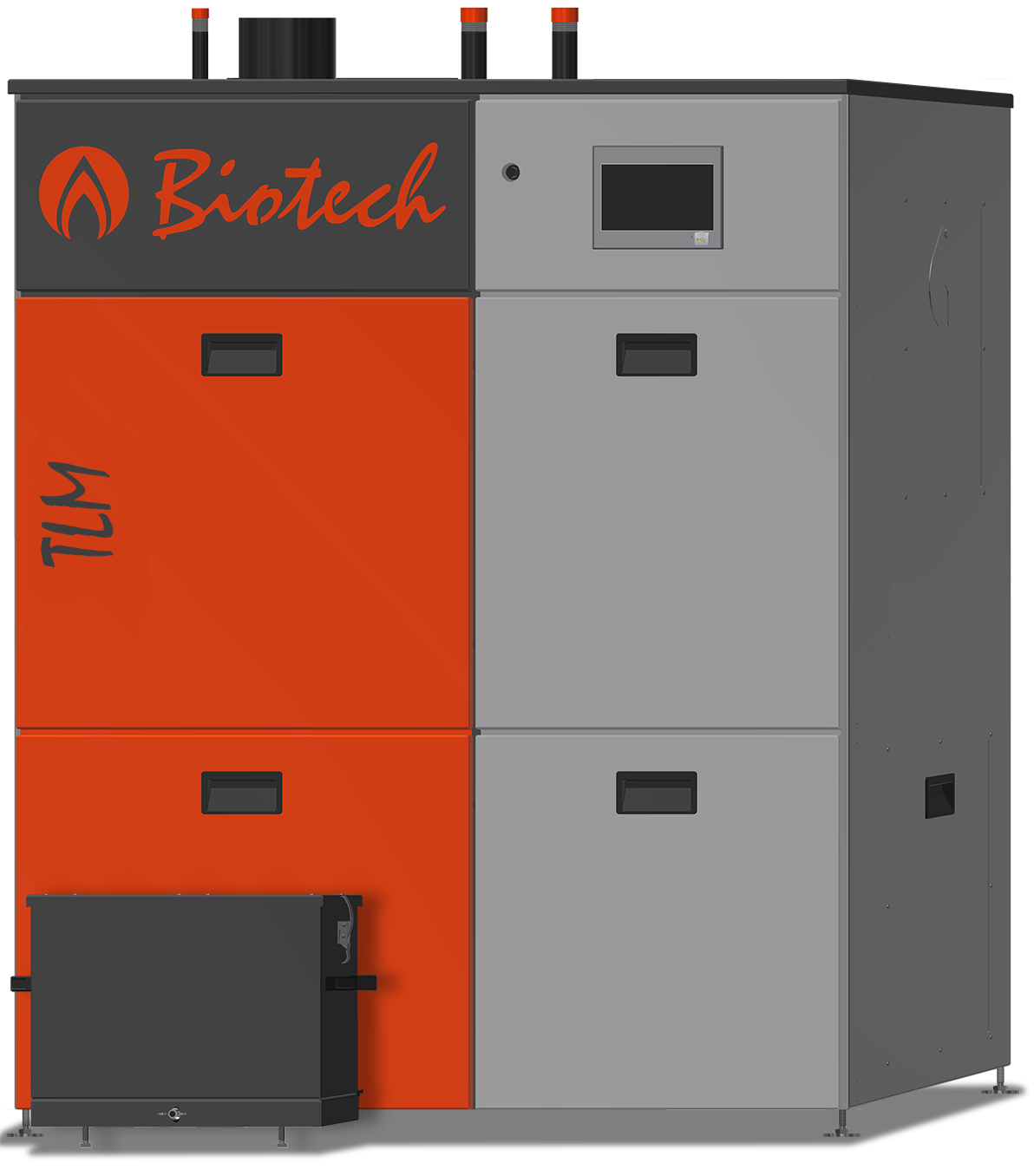

TLM-Pro MBW
TLM-Pro MBW *
The optimal pellet heating system for the detached house. Sophisticated biotech technology, a large storage tank and a top efficiency of 94% characterize this boiler.
* only available for Germany
Power range 5.3-17.5 kW
- Lambda probe cleaning
- Stainless steel firing system (high temperature resistant) with automatic cleaning
- Primary and secondary air regulated with air mass sensor
- Heat exchanger with automatic cleaning
- automatic ignition of the pellets
- Ash drawer with ash compression
- High performance suction turbine with vacuum system
- Pellet hopper for manual filling (optionally upgradable to fully automatic) with approx. 150 kg pellet volume (at a bulk density of 650 kg/m³)
- speed-controlled induced draft fan
- Microprocessor control with fully graphic display
- Remote control via smartphone, tablet, PC and laptop possible
- unique DCC combustion control using air mass sensors and lambda probe
- Contact for external request
Minimum clearances
1: 1000 mm
2: 400-900 mm
3: 100-300 mm *
4: 200 mm
5: 2000 mm
*) Recommendation 250 mm, otherwise increased effort (costs)
