Discharge with the pellet screw

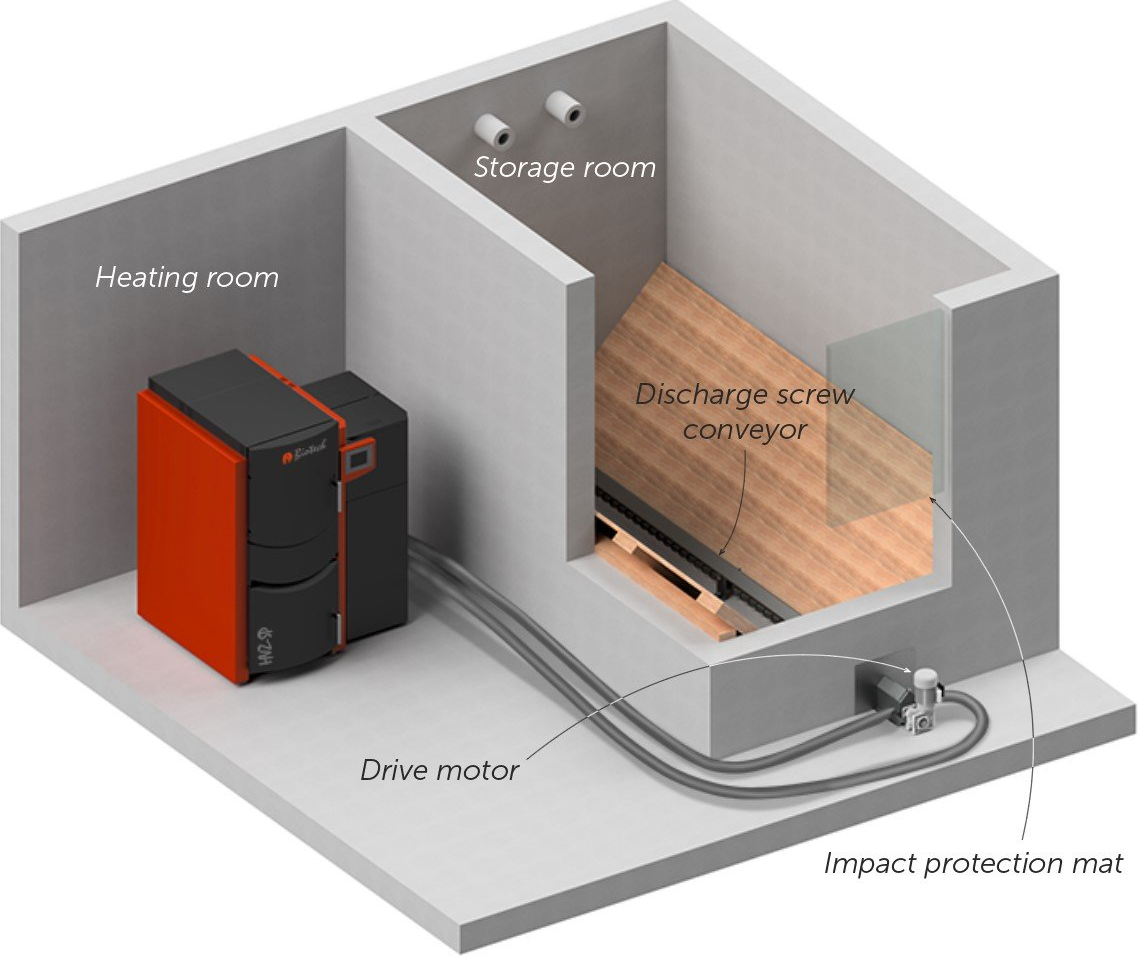

Discharge with a pellet screw is a popular way of transporting pellets, which is particularly suitable for elongated storage rooms. the pellets are conveyed by the auger from the storage room to the extraction point and extracted from there. The suction hose and the return air hose are attached to the left and right of the auger head with the supplied clamps.

A wall recess (220x220 m) is necessary for this type of holding.

Sloping floor

A sloping floor of 45° is essential for this type of storage. The store can be completely emptied as the pellets slide down evenly.

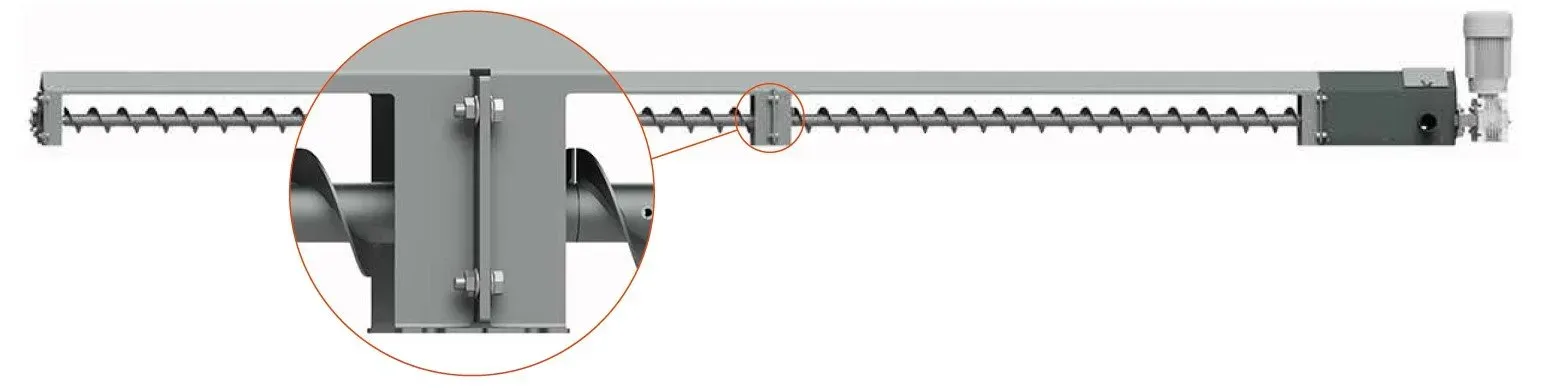

The pellet screw is available in lengths of 1500 mm, 2000 mm,

2500mm, 3000mm and 3500mm available. Divisible versions are also available on request. The hose radius must be at least be 25 cm.
